10 Doors High x 5 Doors (49 Tenants) 1600 Series Front-Load Private Distribution Cluster Mailbox in Anodized Aluminum Finish

Availability: In stock
MODEL #
1600105A
$3,408.00 $3,239.97 Free Shipping in September!
Secure Checkout
Ordering for a project or large community? Request a Bulk Quote
Talk to a Mailbox Expert : 1-866-707-0008

EARN REWARDS

On Every Order

Join Pro Rewards Today

3,239 Points with this purchase

Note: This is a custom, made-to-order product. Please review our return policy before purchasing custom items.

The USPS approves 4B+ Horizontal Mailboxes for replacing existing units. For installations in new buildings, please see Cluster Mailboxes and 4C Horizontal Mailboxes.

Processing Time According to the Manufacturer:

Usually ships in 5 weeks

Learn more about our Estimated Lead Times

Ships directly from the factory floor to ensure the quickest available delivery.

Understanding lead times

Understanding Replacement and Private Delivery Mailboxes

Like many customers, you may have questions about the difference between USPS and Private Delivery. U.S. Postal Delivery is when the USPS Letter Carrier delivers mail to each existing tenant compartment in a cluster mailbox. Private delivery is when the letter carrier drops all the mail at one location and in-house personnel distributes the mail.

Due to changes in postal regulations, you may only use these older 4B horizontal mailboxes to replace a current installation of similar mailboxes without modifying the existing wall opening. However, if you do intend to modify the rough opening dimensions during a replacement or remodel, or if you plan to install for new construction, 4C mailboxes will be required.

If you need a large number of mailboxes but have limited wall space, horizontal mailboxes are an economical solution. Because these mailboxes are designed to meet specifications 30+ years old, they should only be installed indoors as they do not include the same weather resistant features or security features as the current 4C mailboxes.

horizontal-mailboxes-in-large-banks

Mount these horizontal mailboxes in large banks, or on multiple walls.

Multiple-door-size-upgrades

Mount these horizontal mailboxes in large banks, or on multiple walls.

1600/1700 Series - Standard for Private Delivery

private-distribution-img

Rear-load mailboxes (1700 series)

have an exposed back for easy distribution, so keep in mind during planning that additional space will be necessary for a secure room behind the installation. Access to this room may be easily restricted using a key keeper with a private lock.

rear-mailbox-img-1
rear-mailbox-img-2

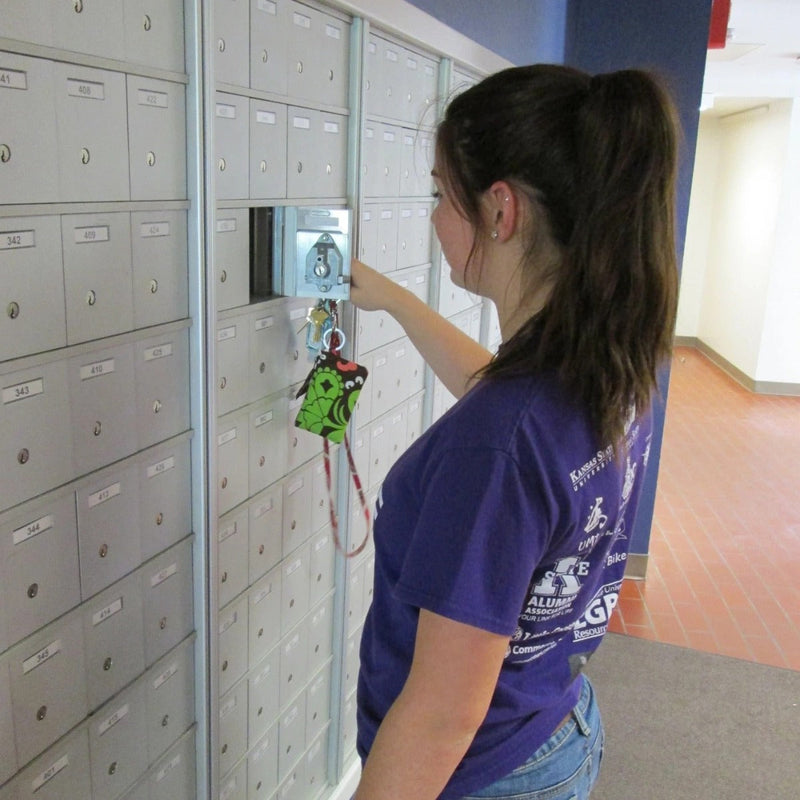

A favorite of University housing managers, this indoor solution helps keep your mail area organized. Available in front-loading (1600 series) or rear-loading (1700 series) units, each module provides a lot of compartments in a small space. Since these are private delivery mailboxes, they are not constrained by postal installation regulations and therefore have no minimum or maximum mounting height requirements.

private-distribution-img

Standard Features

  • Front load, Recess-mounted
  • Prepared for USPS installed Master Lock
  • Anodized aluminum finish
  • 5-pin cylinder tenant cam lock with two keys (1,000 key changes)
  • Clear plastic number slots or engraved numbers
  • Snap-on outer trim kit (available by request)

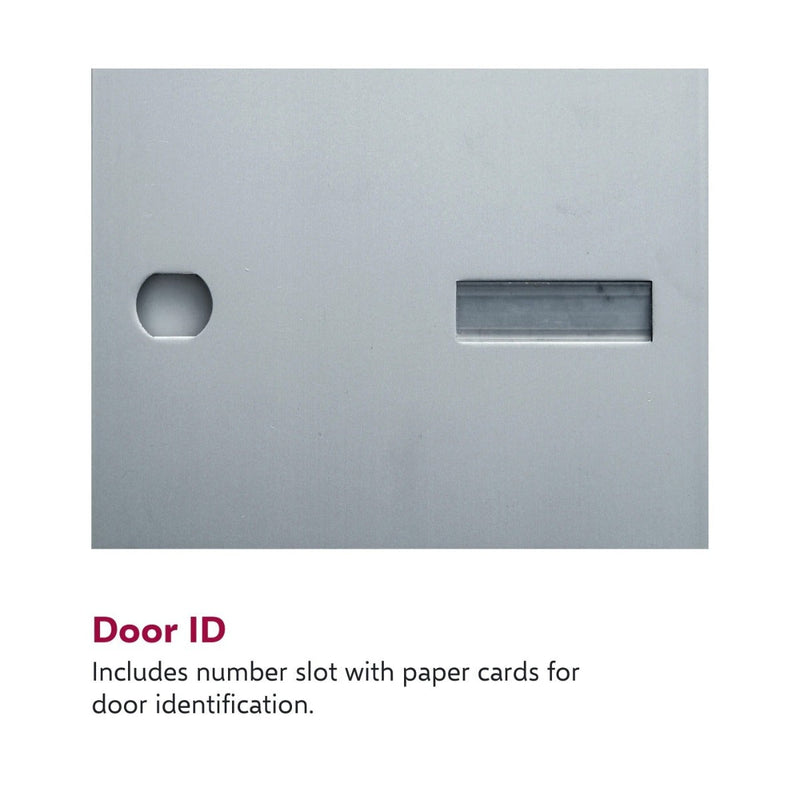

Plastic Number Slot:

Number slots are 5/8 in. H x 2 in. W.

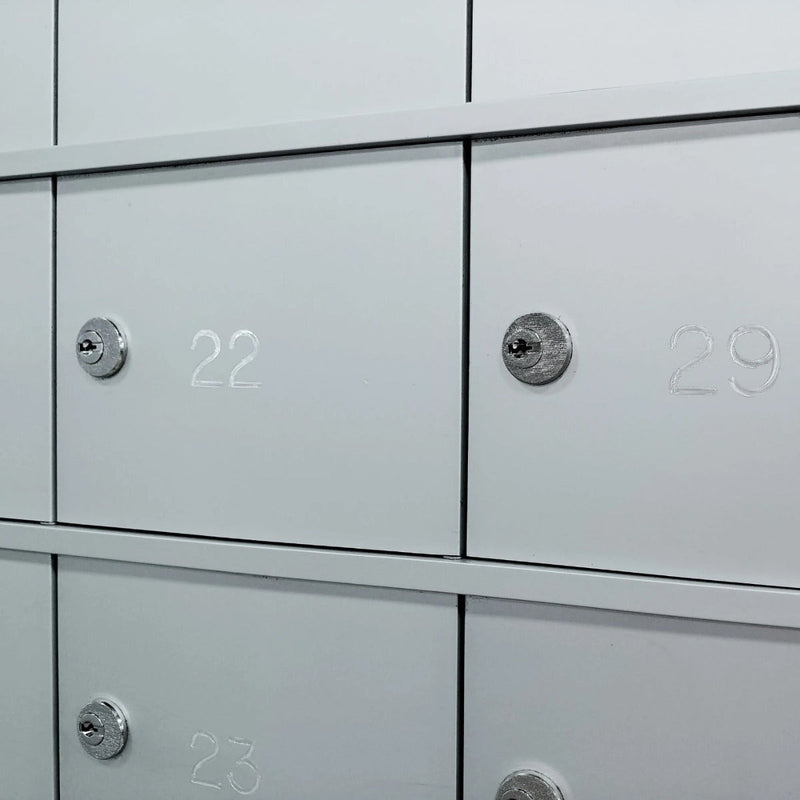

Engraving:

Custom engraving utilizes the USPS Standard US Block font and is 3/4 in. tall. All engraving can include up to 5 Characters in one Line per door.

engraving-img-1
engraving-img-2

Door Size:

All standard units contain one door size. If you need more than the standard configurations, call us at (866) 707-0008.

series-door-img

7 DOORS HIGH

ACTUAL: 38-3/4 IN. H / ROUGH OPENING: 39 IN. H

horizontal-7-door-39h-img-1

160073A

horizontal-7-door-39h-img-2

160074A

horizontal-7-door-39h-img-3

160075A

horizontal-7-door-39h-img-4

160076A

Model 160073A 160074A 160075A 160076A
# Mailboxes (Max) 20 27 34 41
Rough Opening Width 14 in. 18-1/16 in. 22-1/8 in. 26-3/16 in.

8 DOORS HIGH

ACTUAL: 44-3/16 IN. H / ROUGH OPENING: 44-7/16 IN. H

horizontal-8-door-img-1

160083A

horizontal-8-door-img-2

160084A

horizontal-8-door-img-3

160085A

horizontal-8-door-img-3

160086A

Model 160083A 160084A 160085A 160086A
# Mailboxes (Max) 20 27 34 41
Actual Width 13-3/4 in. 17-13/16 in. 21-7/8 in. 25-15/16 in.
Rough Opening Width 14 in. 18-1/16 in. 22-1/8 in. 26-3/16 in.

NOTES:

All standard horizontal mailbox modules shown above are also available in rear-load.

All model numbers listed are for front-load modules; change the first four numbers from 1600 to 1700 for rear-load modules and increase the max number of mailboxes by one.

9 DOORS HIGH

ACTUAL: 49-9/16 IN. H / ROUGH OPENING: 49-13/16 IN. H

horizontal-8-door-img-1

160093A

horizontal-9-door-img-2

160094A

horizontal-9-door-img-3

160095A

horizontal-9-door-img-3

160096A

Model 160093A 160094A 160095A 160096A
# Mailboxes (Max) 26 35 44 53
Actual Width 13-3/4 in. 17-13/16 in. 21-7/8 in. 25-15/16 in.
Rough Opening Width 14 in. 18-1/16 in. 22-1/8 in. 26-3/16 in.

11 DOORS HIGH

Actual: 60-3/8 in. H / Rough Opening: 60-5/8 in. H

horizontal-11-door-img-1

1600113A

horizontal-11-door-img-2

1600114A

horizontal-11-door-img-3

1600115A

horizontal-11-door-img-3

1600116A

Model 1600113A 1600114A 1600115A 1600116A
# Mailboxes (Max) 32 43 54 65
Actual Width 13-3/4 in. 17-13/16 in. 21-7/8 in. 25-15/16 in.
Rough Opening Width 14 in. 18-1/16 in. 22-1/8 in. 26-3/16 in.

NOTES:

All standard horizontal mailbox modules shown are also available in rear-load.

All model numbers listed are for front-load modules; change the first four numbers from 1600 to 1700 for rear-load modules and increase the max number of mailboxes by one.

10 DOORS HIGH

Actual: 55 in. H / Rough Opening: 54-1/4 in. H

horizontal-10-door-img-1

1600103A

horizontal-10-door-img-2

1600104A

horizontal-10-door-img-3

1600105A

horizontal-10-door-img-3

1600106A

Model 1600103A 1600104A 1600105A 1600106A
# Mailboxes (Max) 29 39 49 59
Actual Width 13-3/4 in. 17-13/16 in. 21-7/8 in. 25-15/16 in.
Rough Opening Width 14 in. 18-1/16 in. 22-1/8 in. 26-3/16 in.

12 DOORS HIGH

Actual: 65-13/16 in. H / Rough Opening: 66-1/16 in. H

horizontal-12-door-img-1

1600123A

horizontal-12-door-img-2

1600124A

horizontal-12-door-img-3

1600125A

horizontal-12-door-img-3

1600126A

Model 1600123A 1600124A 1600125A 1600126A
# Mailboxes (Max) 35 47 59 71
Actual Width 13-3/4 in. 17-13/16 in. 21-7/8 in. 25-15/16 in.
Rough Opening Width 14 in. 18-1/16 in. 22-1/8 in. 26-3/16 in.

NOTES:

All standard horizontal mailbox modules shown are also available in rear-load.

All model numbers listed are for front-load modules; change the first four numbers from 1600 to 1700 for rear-load modules and increase the max number of mailboxes by one.

1600/1700 Series - Custom for Private Delivery

horizontal-mailbox-1600-1700-series-img

Sometimes a standard sized compartment is simply not big enough to suit your residents' needs. That's why you can change mail compartment sizes or add as many collection and/or parcel lockers as your installation requires when you start with the custom all tenant compartment unit. These simple configurable options provide greater flexibility in door selection to ensure you can easily replace your current installation (see door size chart for options).

private-distribution-img

Optional Features

  • Eight architectural powder coat color finishes
  • Combination lock
  • Hinged rear doors with private lock (for 1700)
  • Configurable door sizes and layout options

Note: Horizontal mailbox installations should be protected from direct exposure to the weather; Florence is not responsible for damage caused by weather conditions as these products are rated for indoor use only.

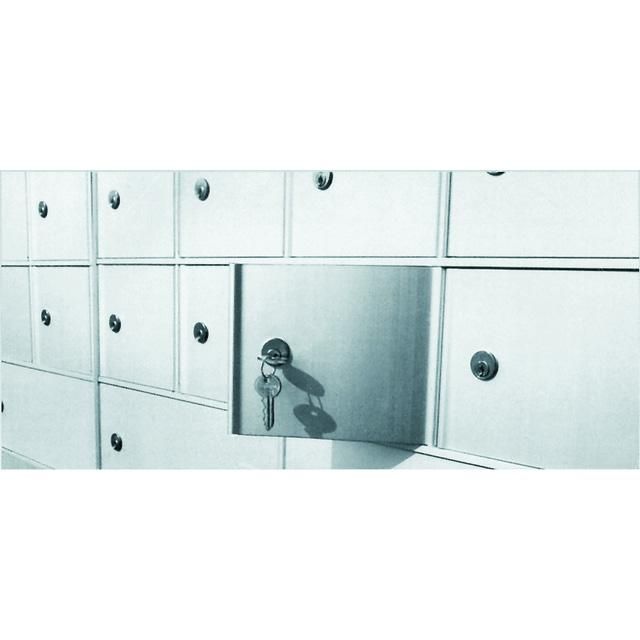

Lock Features

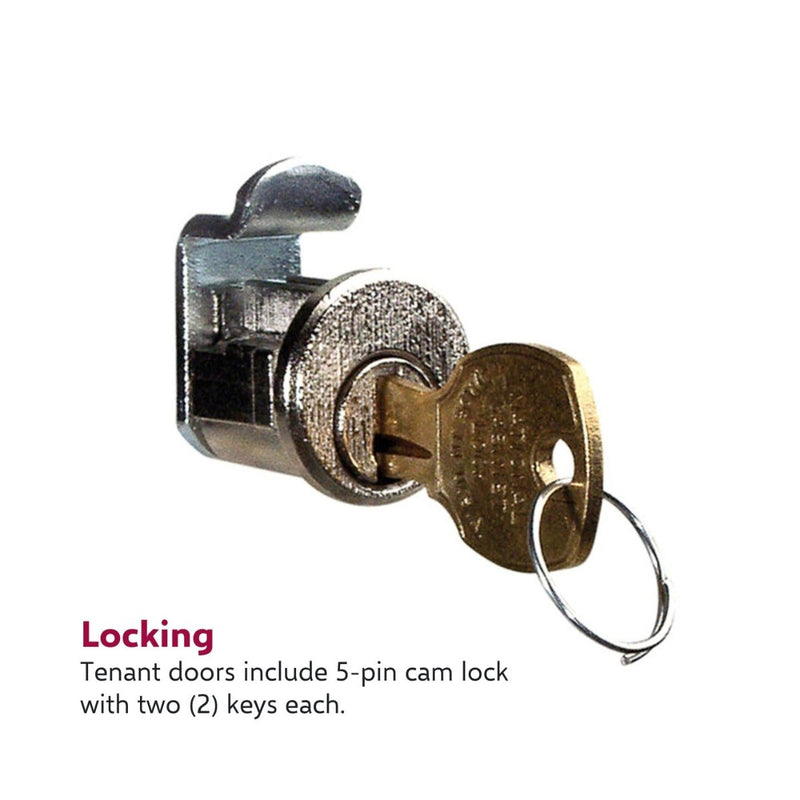

Cam-lock is USPS Approved and standard on all horizontal mailboxes. Lock comes with two keys (1,000 key changes).

uspc-logo
key
uspc-logo

For lock maintenance, only graphite type lubricants are recommended on product locks. For additional assistance with locks, contact your local locksmith.

Color Options

Anodized Aluminum is standard for all horizontal mailboxes. Upgrade your installation to a durable, powder coat finish (available in Dark Bronze).

Dark Bronze (DB)
PMS Black 7C

Door Sizes

Configurable units available in cabinet sizes 3 - 6 Wide and 7 - 12 High.

Tenant
Compartments
Collection
Compartments
Parcel Locker
Compartments
1600/1700
One-High, One-Wide

(5 in. H x 4 in. W)
Tenant Compartments
Collection Compartments NOTE: Collection compartments are available with or without an access lock.
1603/1703
One-High, One-Wide

(5 in. H x 8-1/16 in. W)
Tenant Compartments Collection Compartments
1605/1705
One-High, Two-Wide

(5 in. H x 12-1/8 in. W)
Tenant Compartments Collection Compartments
1604/1704
Two-High, Two-Wide

(10-3/8 in. H x 8-1/16 in. W)
Tenant Compartments Collection Compartments Parcel Locker Compartments
1607/1707
Two-High, Three-Wide

(10-3/8 in. H x 12-1/8 in. W)
Tenant Compartments Collection Compartments Parcel Locker Compartments

For Your Reference

OUR SKU is Florence Mailboxes 1600105A

This item is also sometimes listed under the following manufacturer numbers:

  • 1600105A
Weight150 lbs
Brand Florence Mailboxes
Shipping Info

Usually ships in 5 weeks

Learn more about our Estimated Lead Times
Color Anodized Aluminum
Dimensions Actual Height: 55 in. H / Rough Opening: 54-1/4 in. H | Actual Width: 21-7/8 in. W / Rough Opening: 22-1/8 in. W
Mailbox Type 4B Horizontal Mailbox
Mailbox Mount Type Recessed
Mailbox Material Aluminum
Access Type Front Loading
Delivery Type Private Delivery
Mail Capacity Small Packages
Security Locking
Number of Mailbox Doors 35+ Mailbox Doors
Shipping Estimate

Usually ships in 5 weeks

Learn more about our Estimated Lead Times
Stock Status In Stock
Ships To Ships to the 48 contiguous United States. For AK or HI delivery, please contact us for a shipping quote.
Ship Method Ships via Freight Carrier - Scheduled Delivery
